How to Record SOAP Traffic with MockMotor

SOAP traffic can be recorded and mocked based on payload values. Tweet This

I have shown already how MockMotor can record HTTP traffic.

A single recording response can create a separate mock for each combination of REST or HTTP parameters because they are readily available in the URL.

However, for SOAP it is not as simple. A typical SOAP service has only one URL, and that URL contains no request parameters.

What to do if you want to record a separate SOAP mock for each of the test accounts?

The SOAPAction header can only tell us the operation name. There is no way MockMotor can tell which SOAP request body values are significant for telling one account from another, and which are just noise for our purposes.

Nonetheless, with a little help, MockMotor can record a separate SOAP mock response for each test account.

Let’s see how.

Forward & Record

For the introduction to Forward & Record functionality see the Record HTTP traffic blog entry and Forward documentation.

However, there are configuration properties in Record functionality that weren’t needed for HTTP recording and hence wasn’t explained in previous posts. These are Recording Keys.

Recording Keys

In a HTTP URL like http://example.com?x=100&y=200 MockMotor has no problem extracting request keys x and y and add them to the recorded mock’s match script as x=='100' && y=='200'.

Equally easily, in a REST URL like http://example.com/profile/BE100/connection/2 MockMotor is able to extract keys profile and connection and build a match script profile=='BE100' && connection=='2'.

However, for SOAP requests this automation is not enough. The key value is hidden in the payload where MockMotor is not able to recognize the value’s special meaning. Then you need to help MockMotor a bit.

You can specify the recording keys’ paths - i.e. the locations in the request that contain special values that identify a test account - in the Record section. For each inbound request, MockMotor will evaluate the provided expressions and add them to the recorded mock’s match script along with their evaluated value.

For instance, if the account number is sent in the request under AccNo:

<soap:Body>
  <data:GetAccount>
    <data:Consumer>Bell</data:Consumer>
    <data:AccNo>B9404591E</data:AccNo>
    ...

we can add its path $input//*:AccNo to the Record section, and MockMotor extracts its value (B9404591E) and adds it to the match script as $input//*:AccNo='B9404591E'.

When the same operation is called with a different account number (say A0000210T), another mock is created with the match script as $input//*:AccNo='A0000210T'.

For example, below are the recording keys used for the service that is our test subject today:

As you can see, it extracts two key values from the request - its origin and destination ZIP code.

Recording Keys for JSON Services

We can use JS recording keys’ paths for JSON-based services.

A recording key input.credentials.userid becomes a matching script input.credentials.userid=='TVS45001' in the generated mock.

Recording Averitt’s Transit Time Service

Averitt is a transportation company, not unlike say FedEx.

What makes it my favourite for today’s post is that they have an open SOAP service that calculates the estimated delivery time for a given pair of USA zip codes (that are postal codes for people who lives elsewhere).

The WSDL is here:

http://webservices.averittexpress.com/TransitTimeService?wsdl

The request takes a pair of locations, and returns the expected delivery time:

Request:

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:tran="http://webservices.averittexpress.com/TransitTimeService">
   <soapenv:Header/>
   <soapenv:Body>
      <tran:getTransitTime>
         <arg0>
            <tran:OriginCity>Seattle</tran:OriginCity>
            <tran:OriginState>WA</tran:OriginState>
            <tran:OriginZip>98103</tran:OriginZip>
            <tran:DestinationCity>Houston</tran:DestinationCity>
            <tran:DestinationState>TX</tran:DestinationState>
            <tran:DestinationZip>77092</tran:DestinationZip>
         </arg0>
      </tran:getTransitTime>
   </soapenv:Body>
</soapenv:Envelope>

Response:

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">
   <soapenv:Body>
      <ns2:getTransitTimeResponse xmlns:ns2="http://webservices.averittexpress.com/TransitTimeService">
         <return>
            <ns2:OrigCity>Seattle</ns2:OrigCity>
            <ns2:OrigState>WA</ns2:OrigState>
            <ns2:OrigZip>98103</ns2:OrigZip>
            <ns2:origServiceCenter>NORTH AMERICA LTL NETWORK</ns2:origServiceCenter>
            <ns2:DestCity>Houston</ns2:DestCity>
            <ns2:DestState>TX</ns2:DestState>
            <ns2:DestZip>77092</ns2:DestZip>
            <ns2:destServiceCenter>HOUSTON SERVICE CENTER</ns2:destServiceCenter>
            <ns2:directShipment>no</ns2:directShipment>
            <ns2:EstimatedDays>5</ns2:EstimatedDays>
            <ns2:EstimatedDeliveryDate>04/16/2019</ns2:EstimatedDeliveryDate>
            <ns2:Comment/>
         </return>
      </ns2:getTransitTimeResponse>
   </soapenv:Body>
</soapenv:Envelope>

Now, it is not polite to pound the PROD Averitt service with our test requests.

We also want to force some location pairs to return error codes and timeouts to test the failure scenarios. The service, however, is working very reliably and is not eager to time out or give us the errors.

Then we, of course, need to mock the responses.

Test Data

I’ve prepared a list of 40 locations that are used in the tests.

AL,Huntsville,35801
AK,Anchorage,99501
AZ,Phoenix,85001
CO,Denver,80201
CT,Hartford,06101
DE,Dover,19901
DC,Washington,20001
GA,Atlanta,30301
...
SD,Aberdeen,57401
TN,Nashville,37201
TX,Austin,78701
UT,Logan,84321
VT,Killington,05751
VA,Altavista,24517
WV,Beaver,25813
WI,Milwaukee,53201
WY,Pinedale,82941

I’m going to set up a forwarding mock and record the responses for each pair of these locations. That makes 1600 pairs and 1600 mocks - more than enough for the testing.

I want to mock each response separately because I don’t want to spend time creating a data-driven mock.

Once all 1600 pairs are recorded, no more traffic is going to flow from our test environment to Averitt service.

Then I can manually update statuses and response times for some of the pairs to simulate the errors and timeouts.

Create a Service

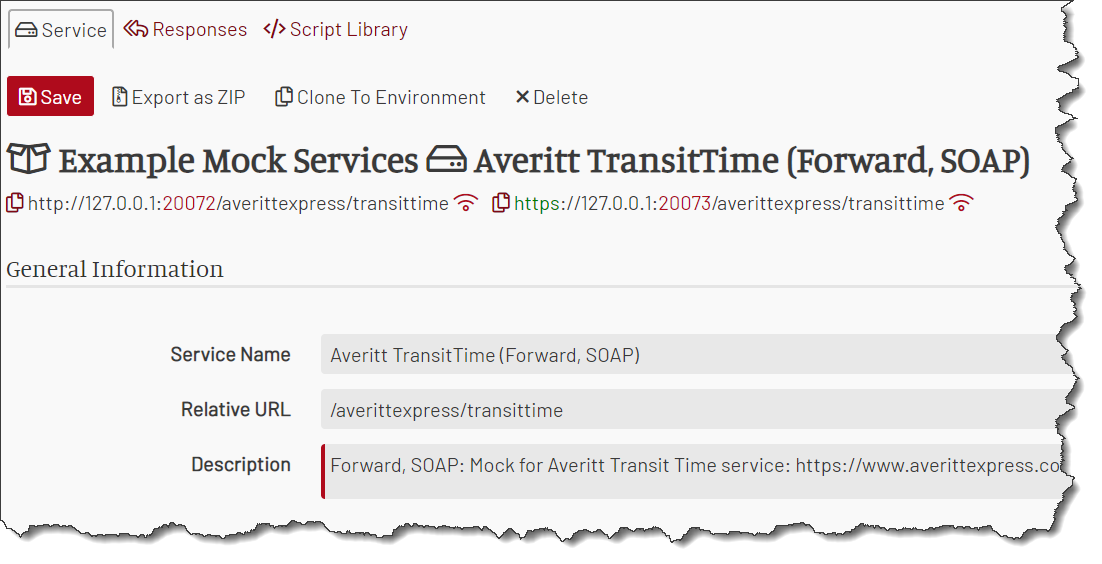

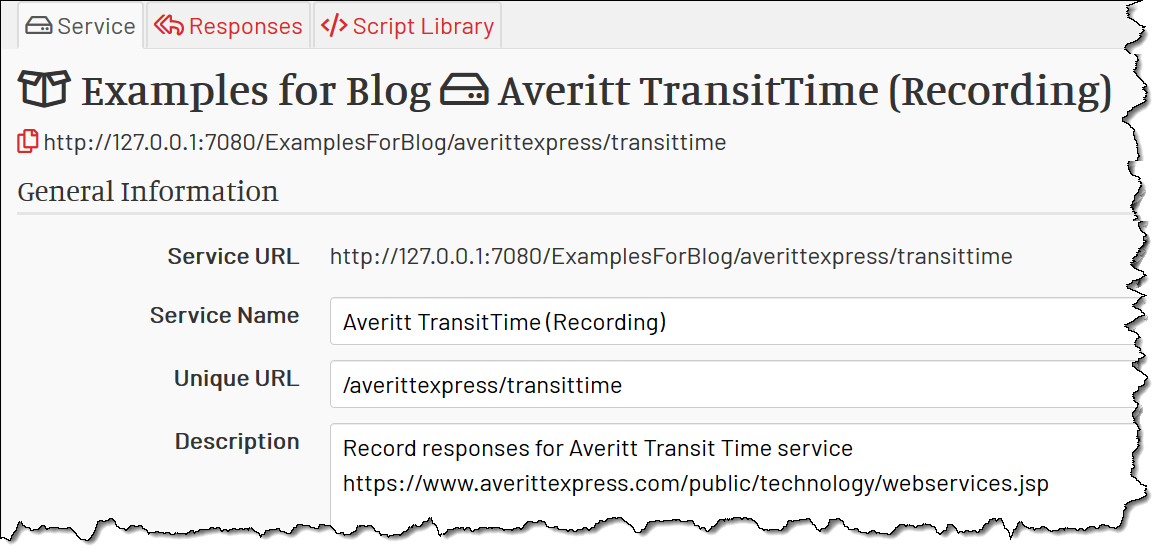

First, we need to create a test service that is going to mock the Averitt API:

Create a Forward Response

How to configure the forwarding mock?

  • It should match POST HTTP operation as befits SOAP.
  • It should match any SOAP operation.
  • It should use XQuery scripting because the payloads are XML.
  • It should have Averitt service URL set in the Forward field.
  • It should have Recording enabled.
  • It should activate the recorded mock immediately.

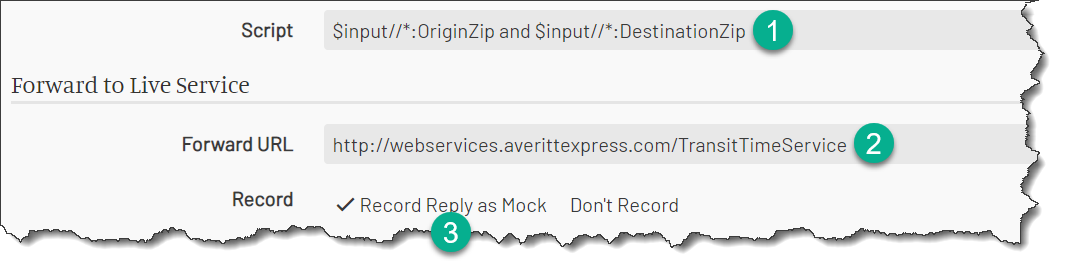

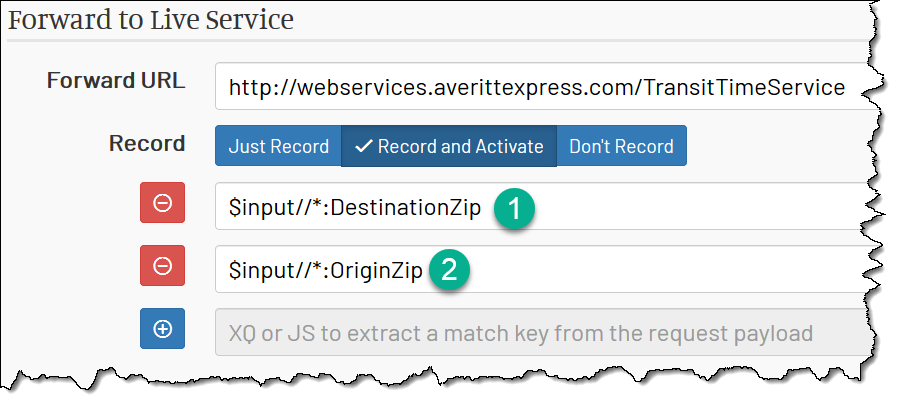

  • It should use OriginZip and DestinationZip elements’ values as the recording keys.

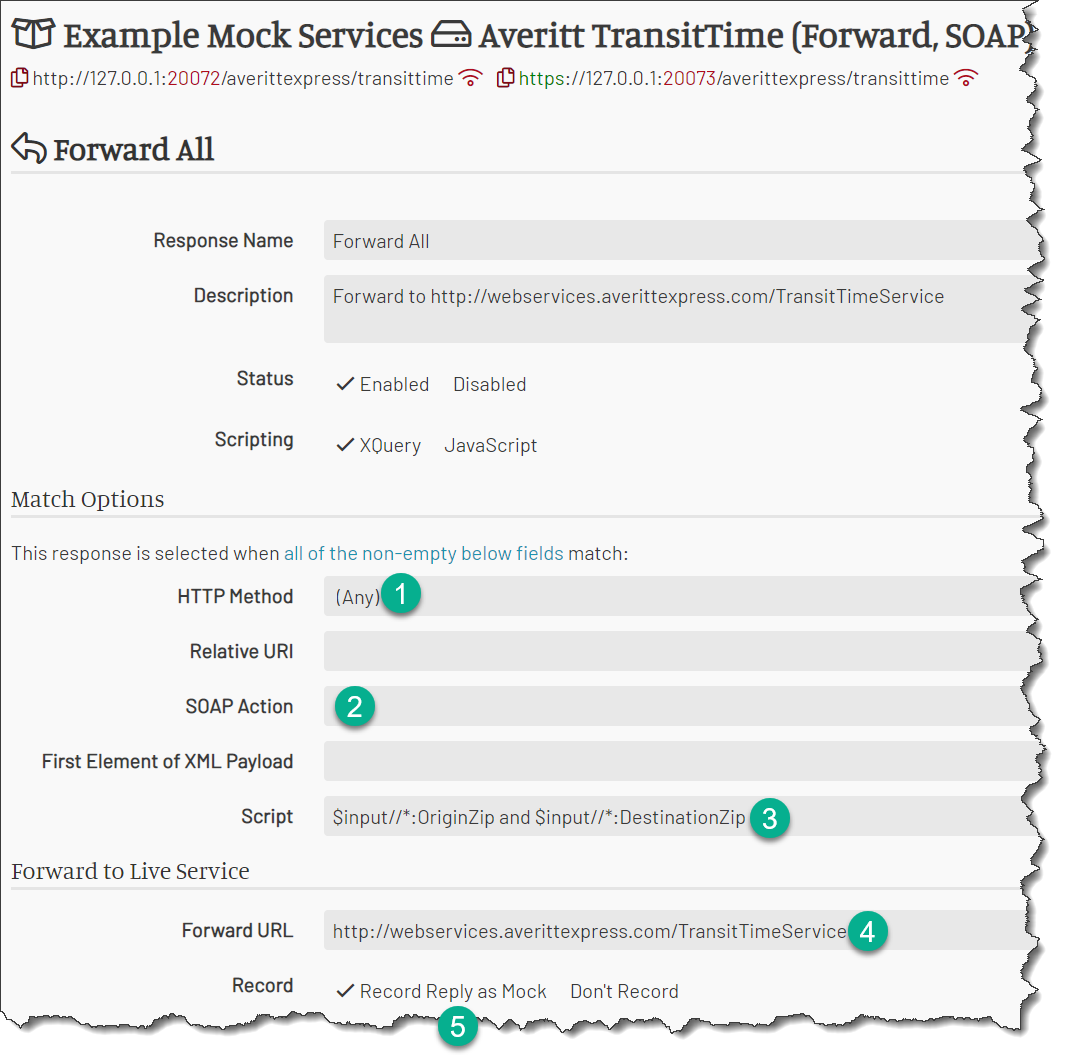

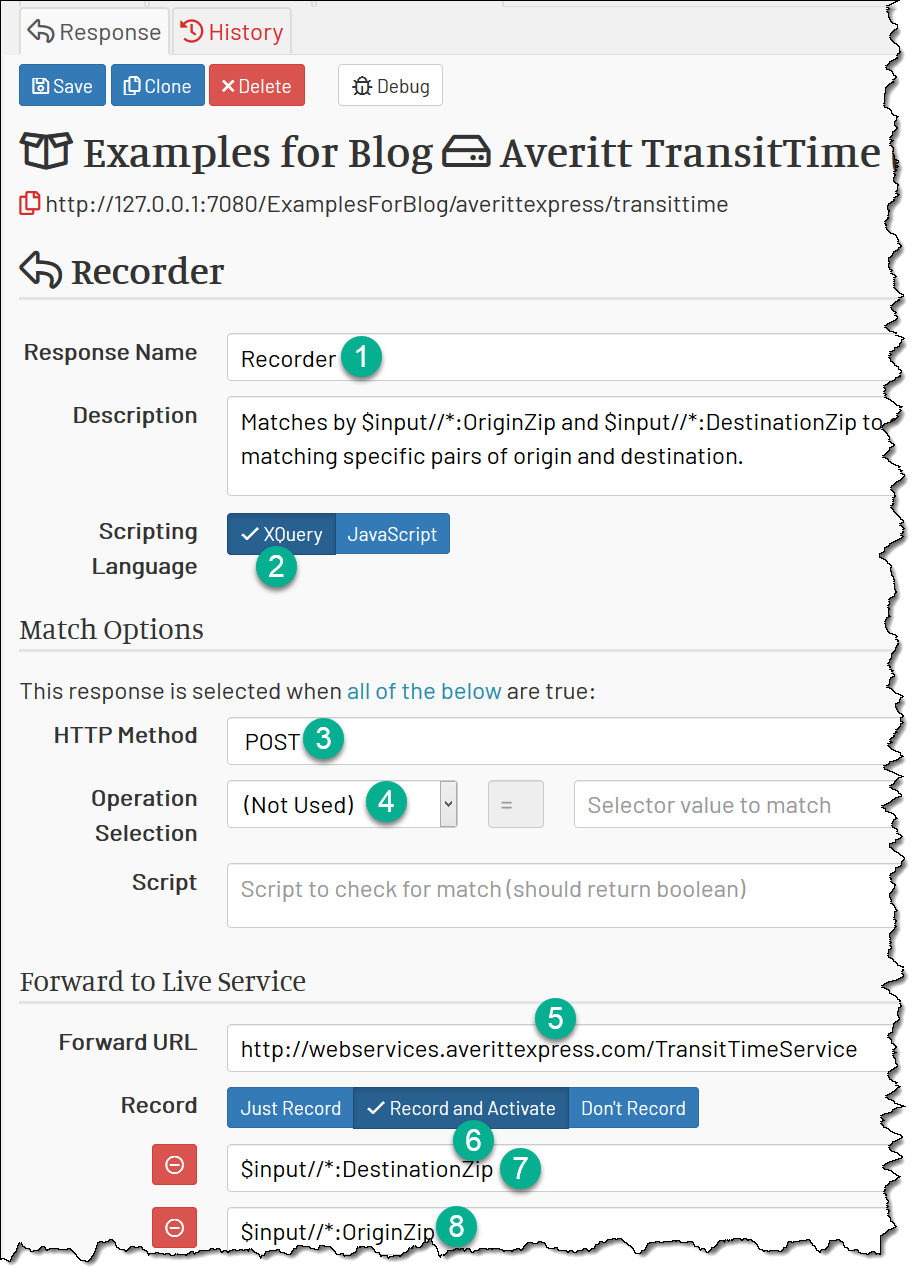

  • Below is the forward response:

    Note that the Record is set to Record and Activate. The new mock is placed above the forwarding mock and begins handling the matching traffic immediately.

    When the Record is set to Just Record, the newly created mock is placed below the forwarding mock. No traffic is reaching it. When the flow is completed, you need to move the recorded mock to its proper place in the list manually.

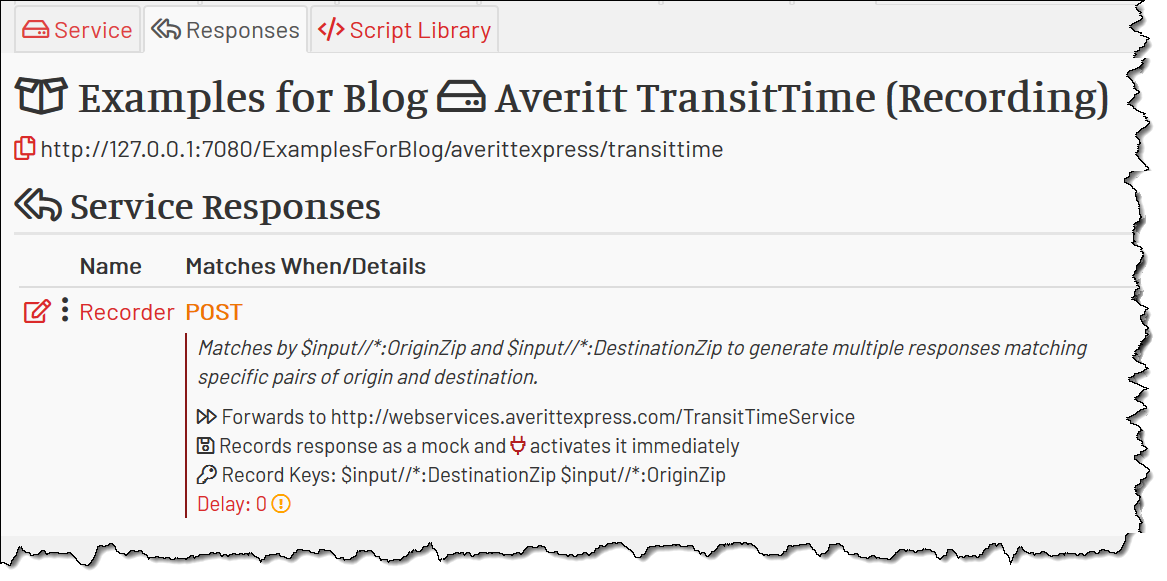

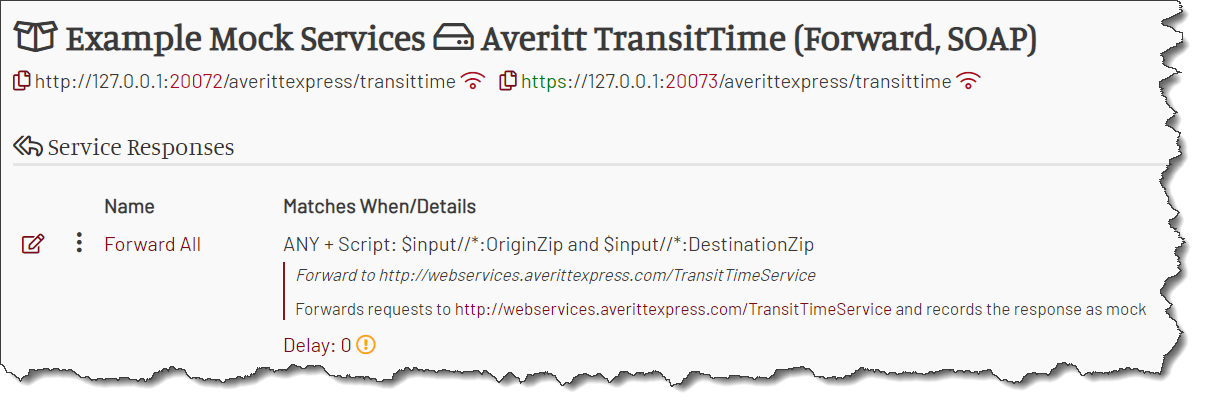

    Here is the forwarding mock in the responses list - still alone:

    Execute 1600 Requests

    Now, let’s execute the requests for each pair of ZIP codes.

    Since I do not have any local mocks yet, the requests will be handled by the forwarding mock. It sends each request to the actual Averitt backend first. When the backend responds, MockMotor records the response and its properties as a new mock.

    Any request with the same recording keys as seen by the service before is handled by one of the previously generated mocks.

    Create a Client Script

    Of course, being efficient (or lazy, which could be the same thing), I’m not going to execute 1600 requests manually. I’m going to use a Python script. In your test environment, you’d probably use your own application.

    import subprocess

    with open("zips.csv") as f:
    	content = f.readlines()

    content = [x.strip() for x in content]

    for i in range(0,len(content)):
    	for j in range(0,len(content)):

    		s1 = content[i]
    		s2 = content[j]

    		a1 = s1.split(",")
    		a2 = s2.split(",")

    		req = f"""<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:tran="http://webservices.averittexpress.com/TransitTimeService">
       <soapenv:Header/>
       <soapenv:Body>
          <tran:getTransitTime>
             <arg0>
                <tran:OriginCity>{a1[1]}</tran:OriginCity>
                <tran:OriginState>{a1[0]}</tran:OriginState>
                <tran:OriginZip>{a1[2]}</tran:OriginZip>
                <tran:DestinationCity>{a2[1]}</tran:DestinationCity>
                <tran:DestinationState>{a2[0]}</tran:DestinationState>
                <tran:DestinationZip>{a2[2]}</tran:DestinationZip>
             </arg0>
          </tran:getTransitTime>
       </soapenv:Body>
    </soapenv:Envelope>
    """
    		reqf = open("req.xml","wt")
    		reqf.write(req)
    		reqf.close()

    		subprocess.run(["wget.exe", "--save-headers", "--header=Content-Type:text/xml", "--post-file", "req.xml", "-O", "-", "http://127.0.0.1:7080/ExamplesForBlog/averittexpress/transittime"])


    The script calls Averitt mock service for each pair of ZIP codes found in the zips.csv file which contains the test data:

    AL,Huntsville,35801
    AK,Anchorage,99501
    AZ,Phoenix,85001
    ...


    Run the Script

    Run it:

    ...
    --2019-04-14 23:38:17--  http://127.0.0.1:7080/ExamplesForBlog/averittexpress/transittime
    Connecting to 127.0.0.1:7080... connected.
    HTTP request sent, awaiting response... 200 OK
    Length: unspecified [text/xml]
    Saving to: `STDOUT'
    HTTP/1.1 200 OK
    Connection: keep-alive
    Date: Mon, 15 Apr 2019 03:38:17 GMT
    X-MockMotor: 1.8.2288
    Content-Type: text/xml;charset=utf-8
    Server: Apache-Coyote/1.1
    Date: Mon, 15 Apr 2019 03:38:18 GMT
    X-MockMotor-Recorded-Response: b3360d64-b141-47e7-9716-8e6f5d1a0d59

    <?xml version="1.0" ?><soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"><soapenv:Body><ns2:getTransitTimeResponse ...

    2019-04-14 23:38:18 (21.5 MB/s) - `-' saved [819]
    ...


    and about 10 minutes later I have every single pair of ZIP codes recorded.

    Note the X-MockMotor-Recorded-Response: b3360d64-b141-47e7-9716-8e6f5d1a0d59 header in the response. This is MockMotor reports that it has created a mock for this response, and provides the response id. It is unlikely that you need this id for any purpose, but it helps to confirm that the mock had been actually created.

    Review the Recorded Responses

    Let’s take a look at the service responses again:

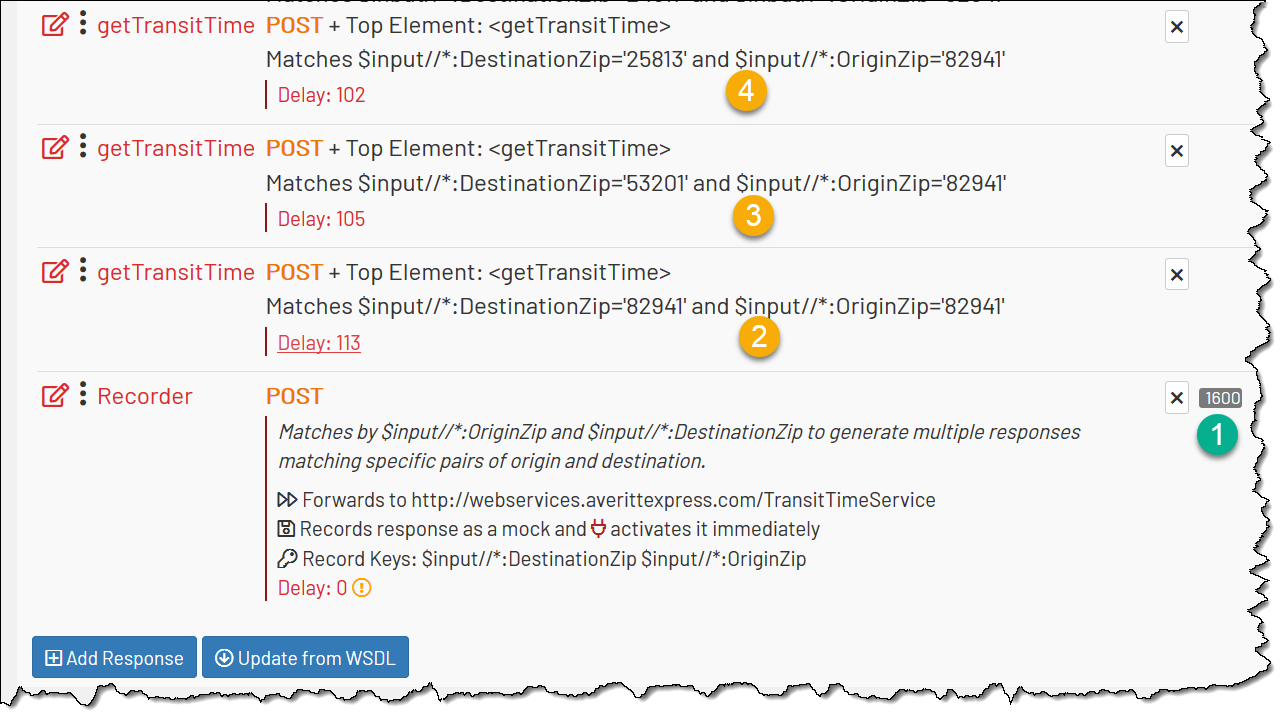

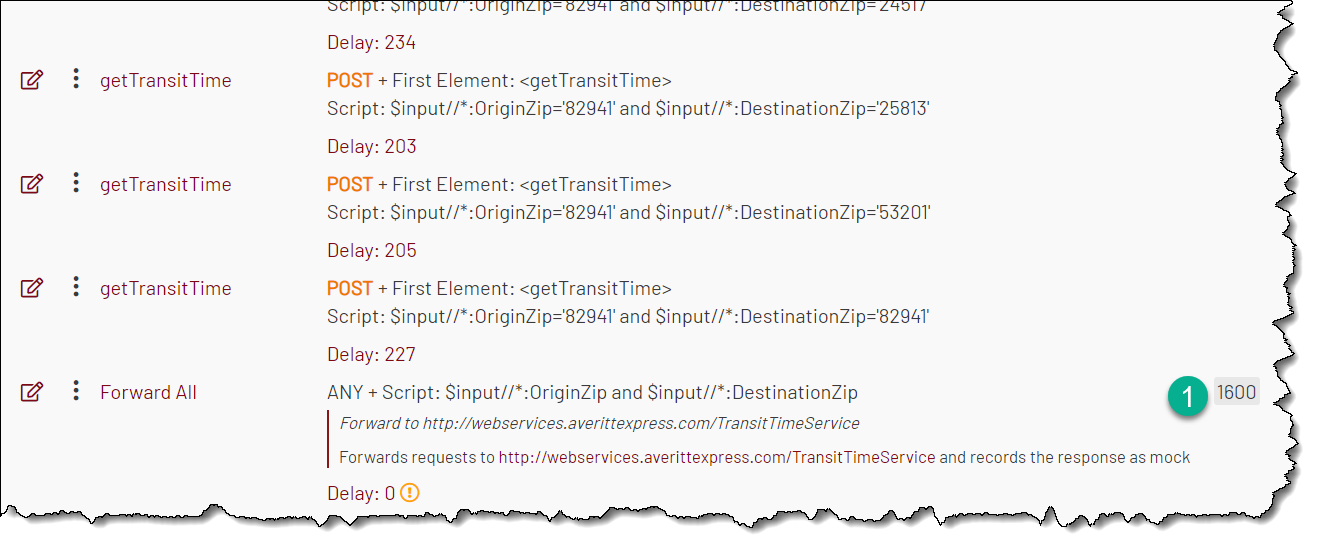

    The forwarding mock was called 1600 times, and that there is a number (1600, of course) recorded mocks above it.

    Note that each of the recorded mocks has its own version of match script, containing its own specific values of ZIP code, e.g.:

    $input//*:DestinationZip='53201' and $input//*:OriginZip='82941'

    In addition to the response payload and the match script, MockMotor recorded:

  • HTTP operation POST
  • Top payload element getTransitTime (SOAPAction is not defined for this operation)
  • HTTP status 200
  • Content-Type text/xml;charset=utf-8
  • Response time 102ms
  • The request to use when clicking the Debug button.
  • Test It

    Let’s test the new mocks.

    I execute the same script as before. Now it should be replied from mocks, and do not call Averitt backend.

    And indeed, you can see X-MockMotor-Delay header in the response, telling that the response was generated locally:

    HTTP/1.1 200 OK
    Connection: keep-alive
    Date: Mon, 15 Apr 2019 04:15:56 GMT
    X-MockMotor: 1.8.2288
    Content-Type: text/xml;charset=utf-8
    X-MockMotor-Delay: 122

    <soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">
       <soapenv:Body>
          <ns2:getTransitTimeResponse xmlns:ns2="http://webservices.averittexpress.com/TransitTimeService">
             <return>
                <ns2:OrigCity>Huntsville</ns2:OrigCity>
                <ns2:OrigState>AL</ns2:OrigState>
                <ns2:OrigZip>35801</ns2:OrigZip>
                <ns2:origServiceCenter>DECATUR SERVICE CENTER</ns2:origServiceCenter>
                <ns2:DestCity>Phoenix</ns2:DestCity>
                <ns2:DestState>AZ</ns2:DestState>
                <ns2:DestZip>85001</ns2:DestZip>
                <ns2:destServiceCenter>NORTH AMERICA LTL NETWORK</ns2:destServiceCenter>
                <ns2:directShipment>no</ns2:directShipment>
                <ns2:EstimatedDays>4</ns2:EstimatedDays>
                <ns2:EstimatedDeliveryDate>04/19/2019</ns2:EstimatedDeliveryDate>
                <ns2:Comment/>
             </return>
          </ns2:getTransitTimeResponse>
       </soapenv:Body>

    2019-04-15 00:15:56 (31.6 MB/s) - `-' saved [974]


    The call count next to the mock responses is incrementing too, while the one next to Recorder response stays the same.

    You can see the complete service on the demo MockMotor instance.

    Performance Considerations

    Having one mock per input may not provide the required response time for load testing.

    MockMotor has to check each mock in a row to find a match. When you have 1600 mocks and the response time must be under 100ms, each check should take 0.06ms. There is no easy way MockMotor can satisfy that, and it can be a showstopper for a load testing run.

    For time-sensitive runs, you should set up a single mock for getTransitTime operation, and upload a set of mock accounts - one per the ZIP codes pair. Those accounts should contain the origin and destination ZIP (to select the account) and all other values (to populate the response). The response then selects the account based on OriginZIP and DestinationZIP values and populates the response payload with the values from that account.
